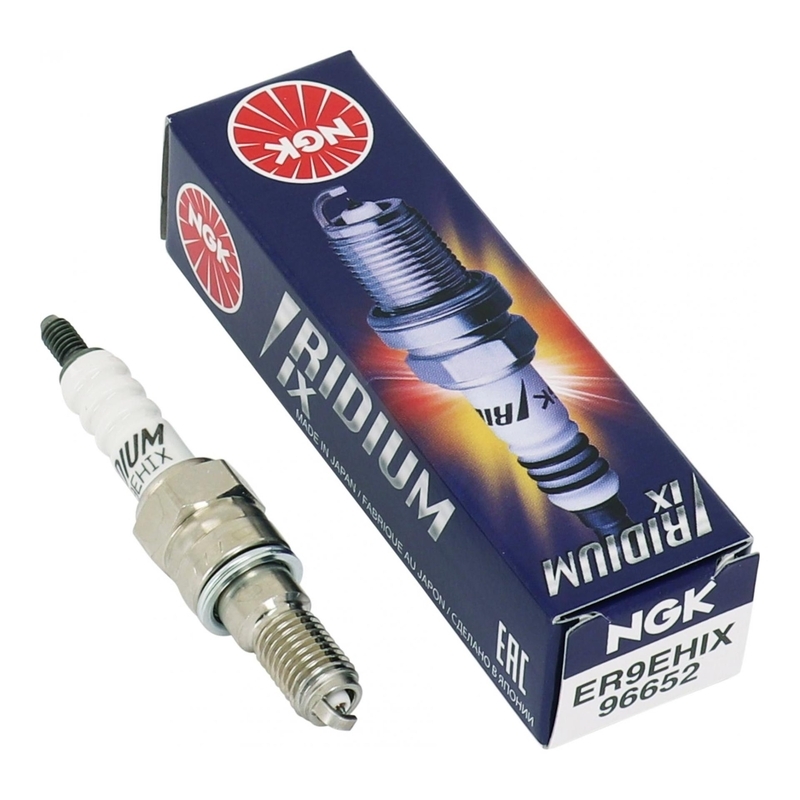

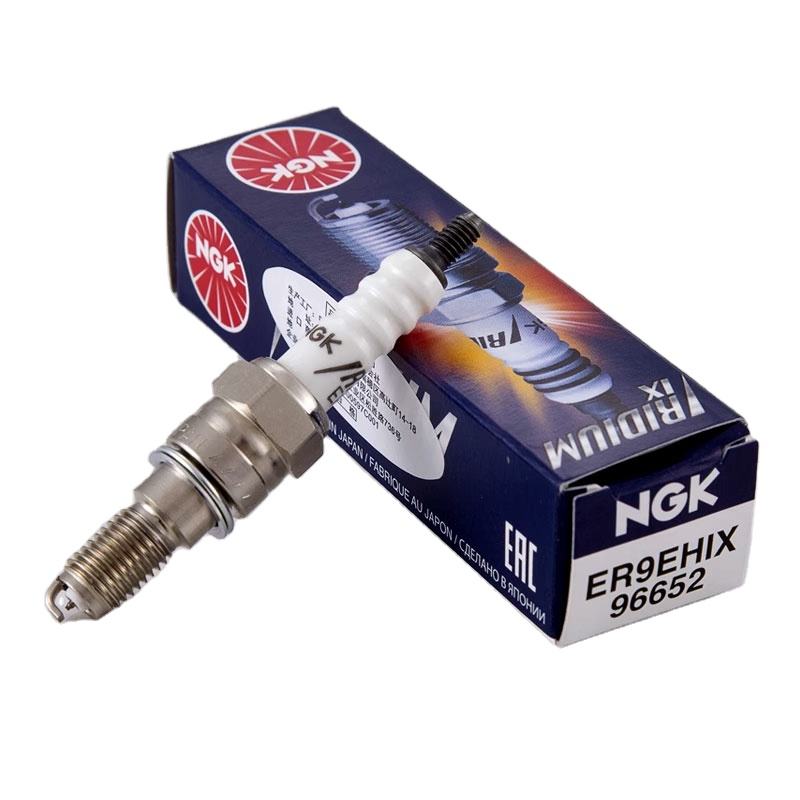

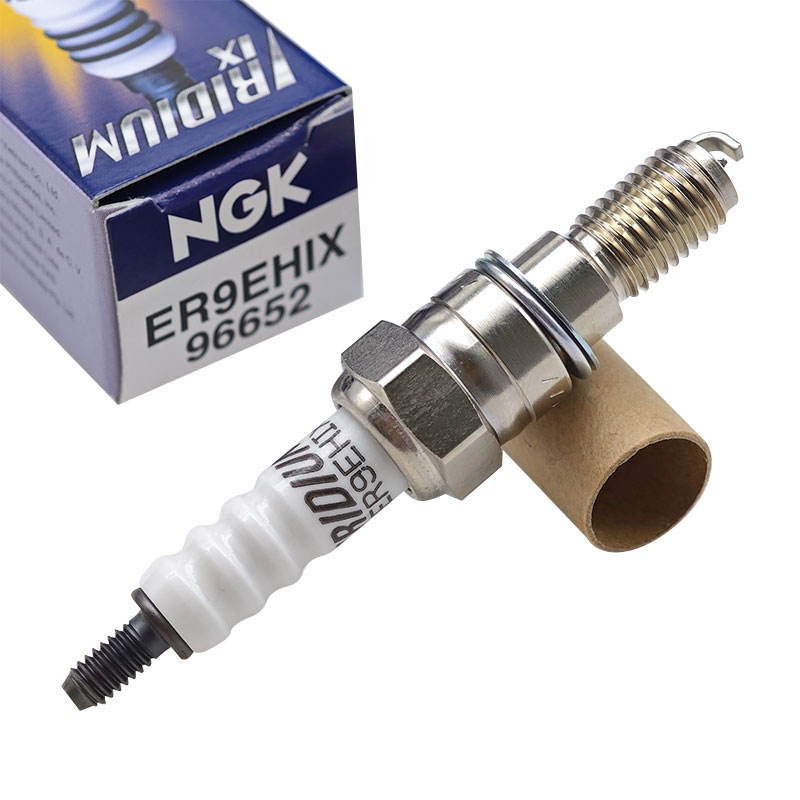

Genuine NGK ER9EHIX (96652) Iridium IX Spark Plug — Specifications, Features & Applications

The NGK ER9EHIX, carried under stock number 96652, is part of NGK’s Iridium IX performance range and is one of the most widely used iridium upgrades for small-displacement scooters and motorcycles. Its ultra-fine iridium electrode fires more efficiently than a standard copper plug, needing less voltage to produce a strong, complete spark — which shows up as easier starting, a smoother idle, and better throttle response, especially in engines that see a lot of stop-and-go use.

This plug is a common replacement for 8 mm thread engines with a colder heat range 9 rating, and it’s frequently specified for GY6-based scooters, Vespa models, various Honda small-engine applications, and larger-displacement bikes such as the RX3S 400cc.

Technical Specifications

What Makes This Plug Different

A fine-wire tip built for efficiency. At just 0.6 mm, the iridium center electrode is a fraction of the thickness of a conventional nickel tip. That smaller footprint lowers the voltage needed to jump the gap, so the plug fires cleanly and consistently even at low RPM — a big advantage in small-bore scooter and utility engines that spend most of their time idling or puttering through traffic.

Durability well beyond copper. Iridium’s hardness and resistance to electrical erosion mean the gap stays accurate for far longer than a standard plug, translating into fewer replacements and steadier performance over the plug’s lifespan.

Better cold starts and smoother running. The combination of the fine tip and grooved ground electrode helps the plug ignite the air-fuel mixture more reliably, which is especially noticeable on cold mornings or after the engine has sat for a while.

Reduced fouling in low-speed engines. Small-displacement engines that run rich or spend a lot of time idling are prone to fouling standard plugs. The more efficient combustion this plug supports helps keep carbon buildup to a minimum.

A colder heat range for sustained running. Heat range 9 places this plug on the colder side, helping it shed heat effectively in engines that are worked hard or run for extended periods, which reduces the risk of pre-ignition.

Corrosion-resistant shell. Trivalent plating on the plug body protects against rust and makes it far less likely to seize in the cylinder head, so it comes out easily at your next service.

Where This Plug Fits

The ER9EHIX is a go-to spark plug for a broad range of small and mid-displacement 4-stroke engines, most commonly:

• GY6 50cc–150cc scooter engines (widely used across Chinese-market scooters and mini-bikes)
• Vespa models including the 50 S, LX 50, and Sprint 150 i.e.
• Various Honda small-displacement models specifying an 8 mm thread, 19 mm reach plug
• Aftermarket performance heads such as Koso 170cc 4-valve kits and similar big-bore scooter conversions
• RX3S 400cc Zongshen — a well-suited match for this model’s ignition requirements

If your engine isn’t listed above but calls for an 8 mm (M8) thread, 19 mm reach, and heat range 9 plug, the ER9EHIX will very likely be a correct match — though it’s always worth confirming against your engine’s spec sheet or the plug currently fitted, since engines can vary quite a bit between manufacturers even at similar displacements.
