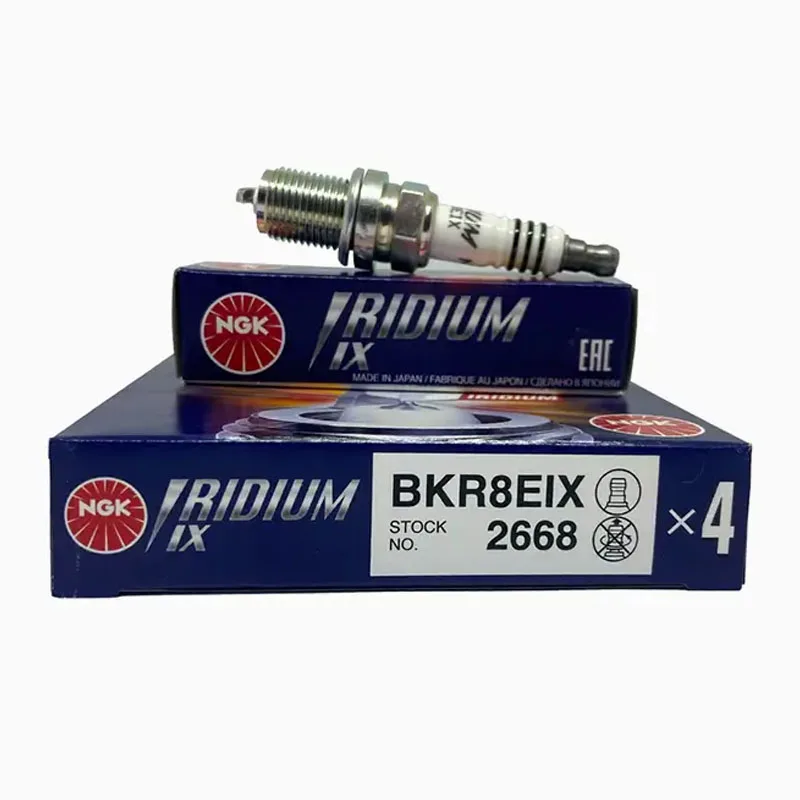

NGK 2668 BKR8EIX Iridium IX Spark Plugs Specification, Features & Applications

The NGK BKR8EIX (2668) is an Iridium IX spark plug designed for high-performance and modified engines. Here’s a detailed overview:

Specifications:

• Part Number: 2668

• Thread Size: M14 x 1.25

• Thread Length: 19.0 mm

• Spanner Size: 16 mm

• Spark Position: 3.0 mm

• Electrode Type: Single Iridium center electrode with tapered cut ground electrode

• Interference Suppression: 5 kΩ

• Seat Type: Gasket seat

• Connector Type: Fixed SAE connector

The fine 0.6 mm Iridium center electrode offers superior durability and a stable spark, while the tapered ground electrode enhances ignitability, acceleration, and fuel efficiency. The trivalent metal plating provides excellent anti-corrosion and anti-seizing properties. These features make the BKR8EIX suitable for high-performance applications and as an upgrade from standard nickel alloy spark plugs.

Features:

1. Iridium Alloy Center Electrode

   • 0.6 mm laser-welded iridium tip for high durability and consistent spark.

   • Melting point over 2,400°C, ideal for high-performance engines.

2. Improved Ignitability

   • Tapered cut ground electrode reduces quenching effect.

   • Delivers quicker throttle response and better cold starts.

3. Anti-Fouling Technology

   • Special insulator nose length prevents carbon build-up.

   • Excellent for engines prone to fouling under heavy loads or idling.

4. Superior Corrosion Resistance

   • Trivalent metal plating for enhanced anti-seizing and corrosion protection.

5. Longer Service Life

   • Outlasts traditional nickel plugs, reducing replacement frequency.

6. Internal Resistor

   • Built-in 5 kΩ resistor suppresses electromagnetic interference (EMI) with electronics.

7. High Combustion Efficiency

   • Promotes a more complete fuel burn for reduced emissions and improved mileage.

Applications & Compatible Models

The NGK BKR8EIX (2668) is compatible with various vehicles, primarily from European and Japanese manufacturers. Here are some notable models:

Ford

• Galaxy Mk1 (WGR): 2.0i (116 HP / 85 kW)

• Transit Mk4: 2.0 (114 HP / 84 kW)

• Transit Mk4 CNG: 2.0 (114 HP / 84 kW)

• Transit Mk4 Platform/Chassis: 2.0 (114 HP / 84 kW)Opie Oils+4apd.co.uk+4ML Performance+4

Jaguar

• XJ Saloon (X300, X330): R Super Charged 4.0 (320 HP / 235 kW)Opie Oils+4apd.co.uk+4ML Performance+4

Lotus

• Exige (SCC_): 1.8 16V (180 HP / 132 kW)

• Exige (SCC_): 1.8 16V (192 HP / 141 kW)AKR-Performance.com+5apd.co.uk+5ML Performance+5

Porsche

• 911 Coupe (996): 3.6 GT3 (381 HP / 280 kW)ML Performance+4apd.co.uk+4Opie Oils+4

Rover

• 100 / Metro Hatchback (XP): 114 GTI/GT 16V CAT (90 HP / 66 kW)Opie Oils+4apd.co.uk+4ML Performance+4

Saab

• 9-5 Saloon (YS3E): 3.0 V6t (200 HP / 147 kW)

• 9-5 Estate (YS3E): 3.0 V6t (200 HP / 147 kW)Opie Oils+4apd.co.uk+4ML Performance+4

Volvo

• 850 Saloon (854): 2.3 T5-R (250 HP / 184 kW)

• 850 Estate (855): 2.3 T5-R (250 HP / 184 kW)

• V70 I (LV, 875, 876): 2.3 T-5 (239 HP / 176 kW)

• V70 I (LV, 875, 876): 2.3 Turbo (250 HP / 184 kW)

Summary

The NGK BKR8EIX (2668) spark plug is engineered for enthusiasts seeking enhanced engine performance, improved fuel efficiency, and increased durability. Its advanced features make it a suitable choice for various high-performance and modified vehicles.

If you need assistance verifying compatibility with your specific vehicle model, feel free to provide your car’s make, model, and engine details.
